D-WEL Hydrogen Generator model numbers

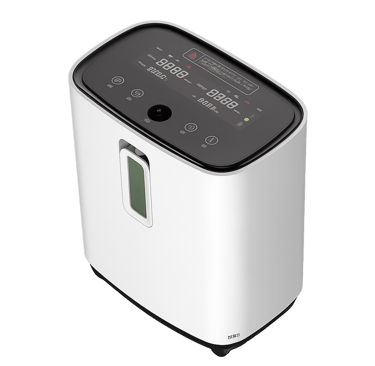

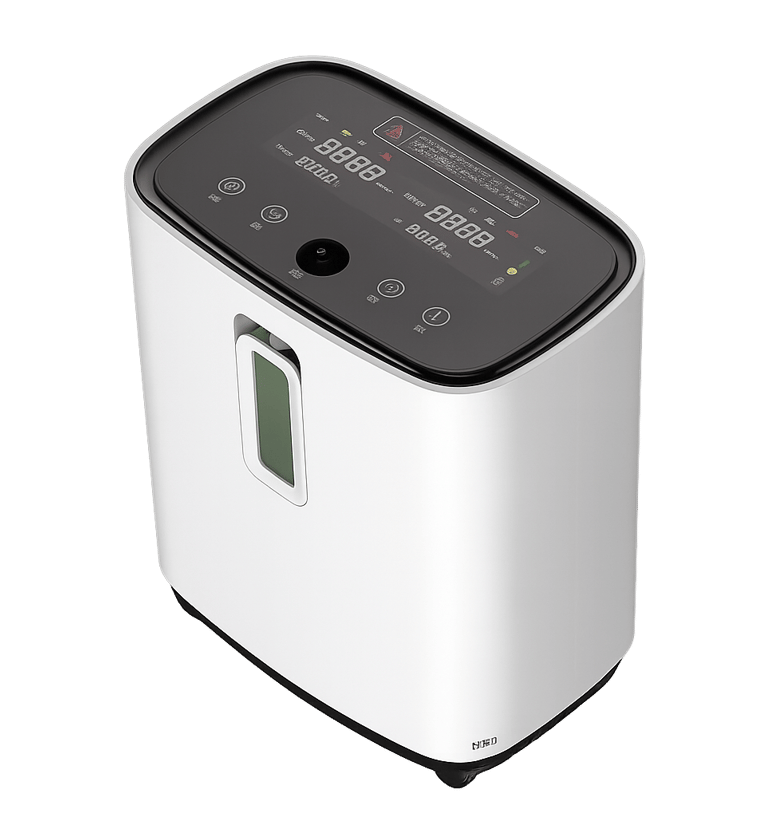

D-WEL 900 | Personal Entry
H₂ Output: 200–600 ml/min
O₂ Output: 100–300 ml/min
Key Specs: Single module, compact. Ideal for a single user.
D-WEL 1500 | Family Wellness
H₂ Output: 400–1000 ml/min
O₂ Output: 200–500 ml/min
Key Specs: Shared family usage. Robust output for a proactive household.
D-WEL 1800H2 | Advanced Personal
H₂ Output: 400–1200 ml/min
O₂ Output: 200–600 ml/min
Key Specs: Dual independent outlets. Personalized gas delivery for versatile support.
H₂ Output: 400–2000 ml/min
O₂ Output: 200–1000 ml/min
Key Specs: Professional experience grade. High-efficiency flow for continuous clinic use.
D-WEL 4500H2 | Flagship/Business
H₂ Output: 1000–3000 ml/min
O₂ Output: 500–1500 ml/min
Key Specs: Continuous operation capacity. Stacked dual-electrolyzer flagship for high-traffic establishments.
D-WEL 3000H2 | Wellness Center
Engineering Transparency: Why Materials Matter?

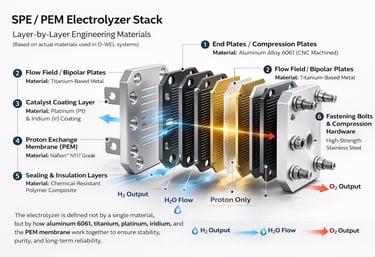

The SPE/PEM Electrolyzer Stack:
Titanium Bipolar Plates: High-strength, corrosion-resistant substrate designed for a stable electrochemical environment.
Noble Metal Catalysts: Using Platinum (Pt) on the cathode and Iridium (Ir) on the anode for efficient, consistent gas production without overdriving current.
DuPont™ Nafion® N117 Membrane: A thicker-grade proton exchange membrane chosen specifically for superior gas separation and long-term mechanical stability.
